Description
Alloy frame 6061 T4 T6 with 170mm rear travel, forged and CNC parts, hydroformed tubes, geometry 29″/27.5″, integrated battery
S (154 – 167cm) M (168 – 177 cm) L (178- 184 cm) XL (185 – 200cm)
SHIMANO STEPS EP6 – 85 Nm (250W) – 630 Wh waterproof battery
Cyclo Computer SC-EN600 with 1,4″ color LCD display -with remote control SW-EN600-L
ROCK SHOX – DOMAIN 29″ Boost, DebonAir 170 mm, E-MTB, 44 OFFSET, 1.8 Tapered
ROCK SHOX – DELUXE Select R , THOK Custom tuned
SRAM – Guide T, 4 pistons, 203 mm Centerline rotor
SRAM – NX 12S
SRAM – SX Eagle Trigger
SRAM – Eagle 12S, 11-50
SRAM – Eagle 12S
FSA 165 mm with chainring 34 T
THOK Drift – 29″x30 mm ant. e 27.5″x35 mm
THOK forged, front clamp oversize da 35mm, lenght 35mm
THOK da 35mm, rise 20mm, 780mm
THOK – Lock-On grip, regular size
MAXXIS Assegai 29×2.6 ant. e 27.5×2.6 post. 3C / EXO+ / TR
THOK – Dropper post (125 mm size S – 150 mm size M – 170 mm size L and XL)
THOK – Fit in Chromo
NW 482S in polietilen
25,6 Kg (Medium size without pedals
E-ENDURO STEAMROLLER

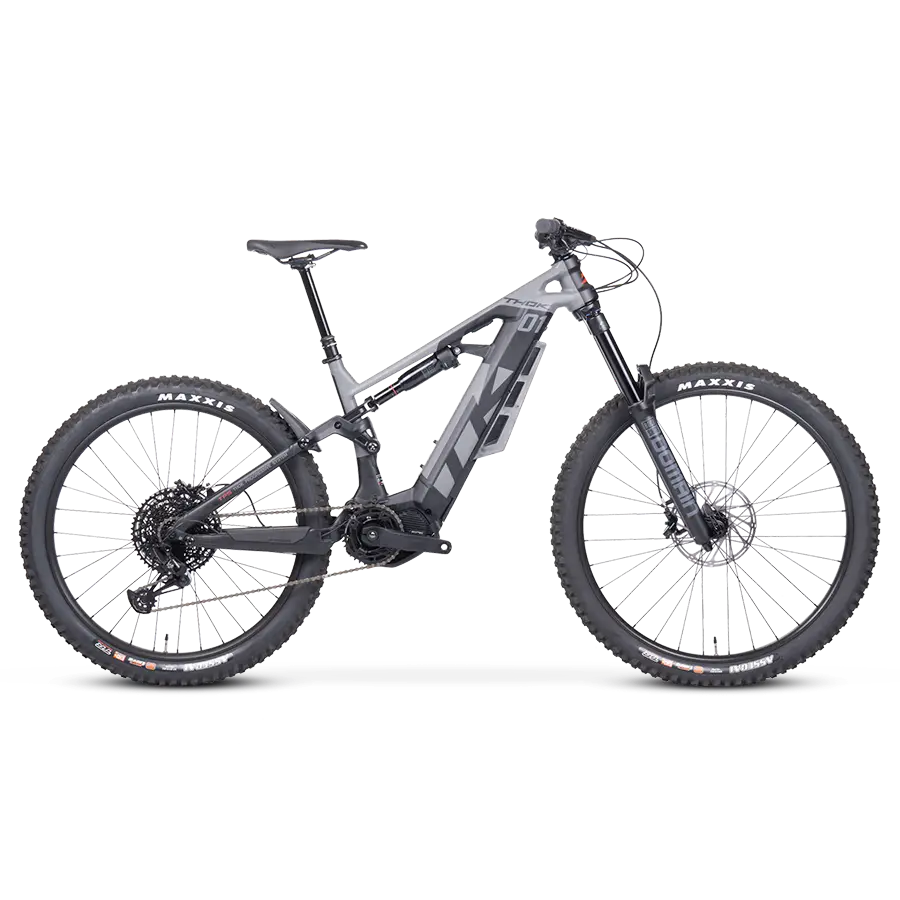

The TK01 extends your excursions and allows you to tackle even the most extreme trails, having fun in safety. With a 170mm travel, 4-piston brakes, 12-speed transmission, integrated 630 Wh battery, and a new Shimano EP6 motor. The “Precise Front End” for tapered 1.8 head tube marks a groundbreaking change in the steering area of E-MTBs. With differentiated diameter wheels of 29” and 27.5”, it is the ideal companion for enthusiasts of adrenaline-fueled physical activity and the intense sensations that E-Enduro can provide. An uncompromising “trailblazer” in terms of agility!
SHIMANO EP6 ENGINE
The new EP6 Shimano drive unit features:
- 85Nm of maximum torque, delivering a smooth, intuitive and natural ride feeling
- Aluminium body
- Extensive customization options with E-TUBE PROJECT Cyclist Cyclist Cyclist app via FINE TUNE mode, to best adapt to each user’s needs.
- Expanded connectivity via CAN and ACC ports
- Extremely intuitive STEP SC-EN 600 colored display
- New SW-EN600-L assist switch with integrated drive unit power button
ITALIAN DESIGN
The TK01 is designed by Aldo Drudi, the Italian designer who won the Compasso d’Oro, renowned worldwide for being the creative mind behind the helmets worn by Moto GP pilots.
THE NAMEThe name of the TK01 family is derived from Aldo Drudi. “TK” is the abbreviation of THOK that Aldo used to name the initial design draft of the bicycle.
“01” signifies that it was the first draft selected.
